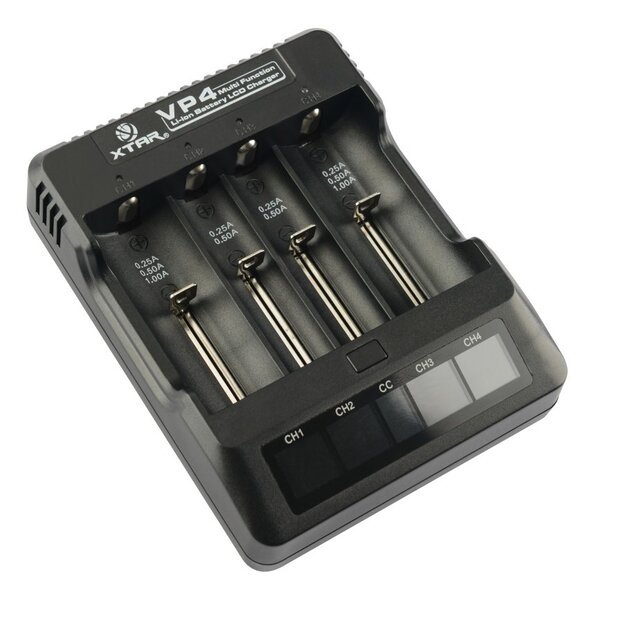

The Xtar VP4 battery charger has four independent charging bays and is suitable for charging the following lithium-ion batteries;
- Four 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700 size batteries or two 22650, 25500, 26650 size batteries.
- For charging 3.6 V and 3.7 V lithium-ion / IMR rechargeable batteries only. There are three charging current options of 1 A (two outer bays only), 0.5 A and 0.25 A
- Supplied with a UK mains adaptor and car charging adaptor.
- Note: Always use in accordance with instruction manual and read before first use.
Product Features
- Also compatible with IMR lithium batteries
- Reverse-polarity, short-circuit and over heat protection
- Three-modes ( TC.CC.CV ) charging system
- LED status indicators
- 0 V activation function to revive over-discharged batteries
- Soft start charging
- Real-time detection of battery status
- Battery type recognition
Charger Specifications
- Operating temperature: 0-40 ℃
- Input Voltage: 12 V dc @ 1000 mA
- 0.25 A Constant Current: 250 mA (4 bays)
- 0.5 A Constant Current: 500 mA (4 bays)
- 1.0 A Constant Current: 1000 mA (2 outer bays only)
- Cut-off Voltage: 4.2 V
- Dimensions: 147 x 115 x 35 (mm)
- Weight: 218 grams
Packaging and Contents

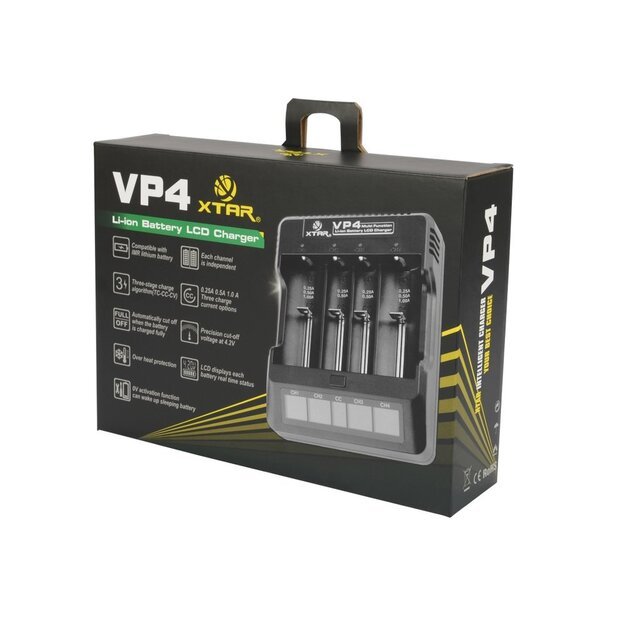

- Supplied in retail packaging and includes:
- Xtar VP4 four bay charger x 1
- UK mains adaptor x 1
- Car charger adaptor x 1
- Instruction booklet x 1
