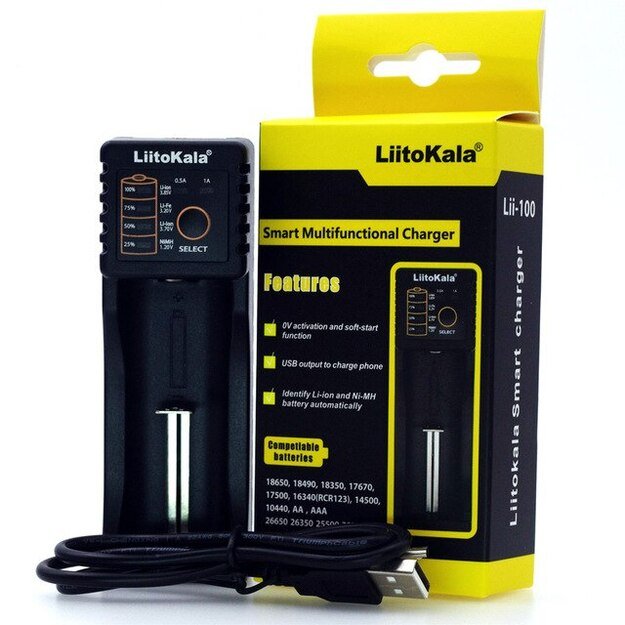

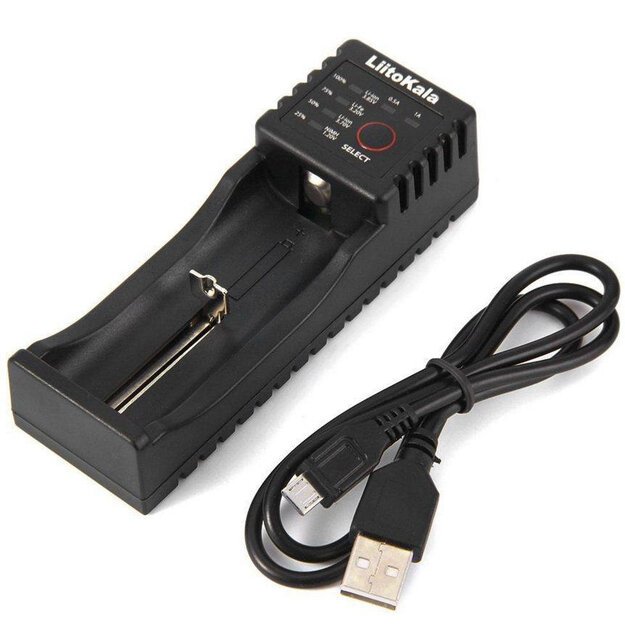

LiitoKala Lii-100 is designed for portable, flexible and multi types of batteries. It can detect the battery type and charge the battery automatically under your selected charging current. Built-in LED indicators to display the charging status and 5V / 100mAh USB output function.
- One-slot charging and management system, Micro USB DC 5V input port
- 500mAh/1000mAh charging current for selection
- Built-in LED indicator shows the charging status 25% – 50% – 75% – 100%
- Identify Li-ion and Ni-MH battery automatically
- MUST fix the charging mode to Li-Fe when you charge LiFePO4 battery or 3.85V Li-Ion battery
- (Identify 1.2V Ni-MH/3.7V Li-ion battery automatically and select manually for 3.85V battery Li-ion and
- LiFePO4 battery)
- Refresh function for 0V battery
- CAN’T charge battery type of 1.6-2.2V
- Over-charging and over-discharge protection
- Identify broken/defective battery
- Polarity- reverse protection
- Charging under constant voltage and current
- Built with 5V/1000mAh output port
- INPUT:5V
- Input Power: Micro USB DC 5V/1A
- Output voltage: 4.2V ±1% / 5V
- Output current: 500mAh / 1000mAh
- Constant charging with cut-off current less then 100mAh
- Standby current: No more than 15mAh
- OUTPUT:5V
- USB output open-circuit voltage:4.90-5.30V
- Output voltage: 1000mAh and output voltage is 4.75-5.25V
- Cut-off voltage for output: 3.0±0.1V;
- Compatible Batteries:
- Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
- Size(cm)/Weight(grams):
- Length 112mm x Width 37mm x Height 32mm
- 45 grams (charger) + 17grams (USB cable) included in delivery
- Contains: 1x LiitoKala Lii-100 USB Battery Charger, 1x USB Cable
