LiitoKala battery charger Lii-L2

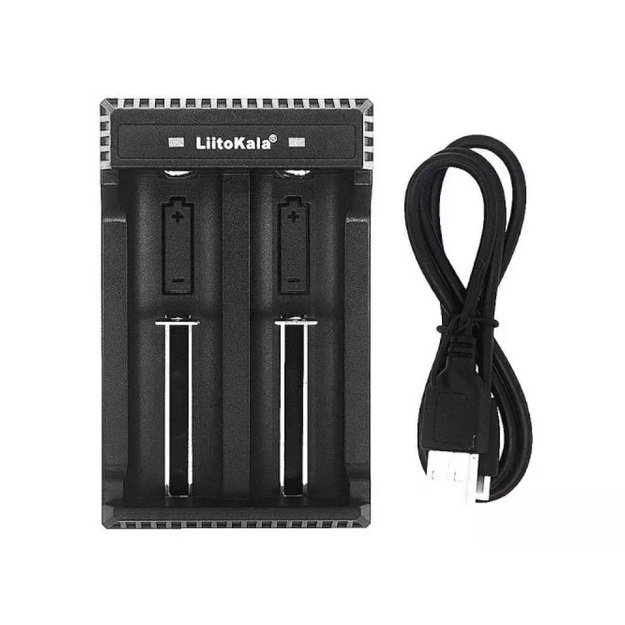

The charger Liitokala Lii-L2 is a two-channel charger suitable for all popular sizes of lithium-ion (lithium-ion) batteries.

Charging is done using a fixed current of 500 mAh, which is common and recommended for almost all lithium-ion batteries. The charging channels are independent, so the Lii-L2 can charge one or two batteries.

Charging indication is implemented using two-color indicators for each channel separately: the LED lights up red during charging and green when finished. LiitoKala Lii-L2 is powered by a standard 5V USB port; it is recommended to use high-quality network adapters with an output current of at least 1 amp.

A charging cable (USB-microUSB) is included in the package. As a power source, you can use, for example, a smartphone power adapter, a car cigarette lighter adapter, a solar panel with a USB output or a PowerBank device (mobile). power source).Despite the apparent simplicity of this charger, it uses an optimal charging algorithm and is equipped with all the necessary protections - against short circuit, overcurrent and incorrect battery insertion (polarity error).

The movable spring-loaded negative contact adapts to the length of the battery and ensures a reliable connection. To ensure safety, the charger body is made of non-flammable plastic.

The smart charger LiitoKala Lii-L2 can work with the following types of batteries:

Li-ion: 18650, 14500, 18490, 18350, 17700, 17500, 16340 (RCR123A), 26650, 22650, 26500, 21700, 20700 other cylindrical rated voltage 3.6/3.7V (4.2V max charged ).

Advantages and unique features:

• Supports most Li-ion batteries rated at 3.6/3.7V.
• Most lithium-ion batteries have an optimal charging current of 500 mA.
• Two independent charging channels with individual status indication.
• Powered by a universal USB port.
• Has 3 levels of protection.
• Housing made of non-flammable plastic.

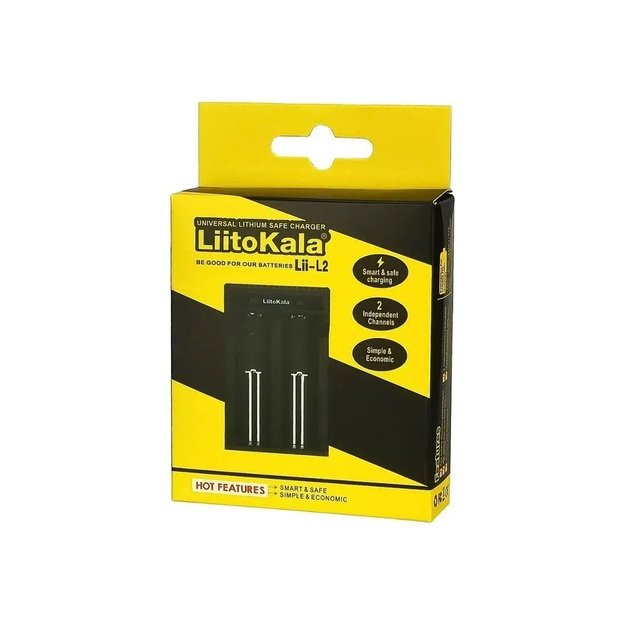

Complete set:

• charger,
• microUSB cable,

INDEX:

• A green light indicates that the device is in standby mode or the battery is charged.
• Red light - the device is charging.

PRECAUTIONS:

• This product can only charge lithium-ion batteries. Attempting to force charge another type of battery may damage the battery or charger.
• The device is suitable for charging indoors or in a car. Do not use it outdoors in rain, snow, direct sunlight, or when the ambient temperature is too high or too low. Use this charger in a temperature range of 0-40 degrees Celsius.
• Do not allow children to use the device without adult supervision.
• Do not disassemble or reassemble this charger.
