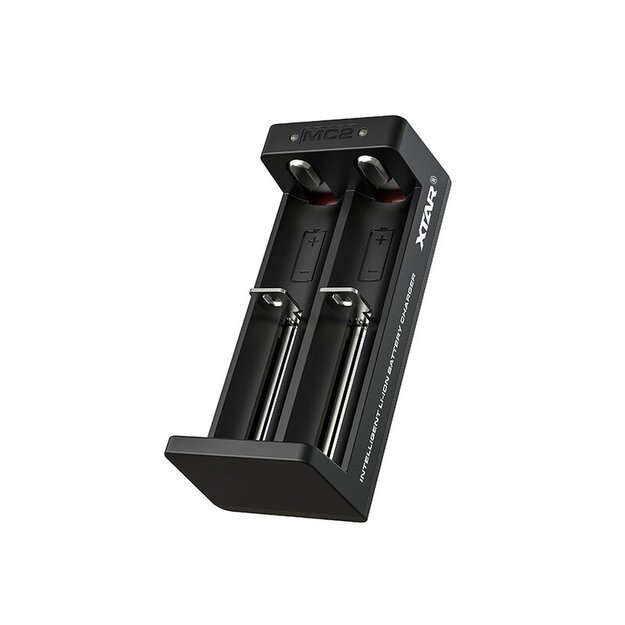

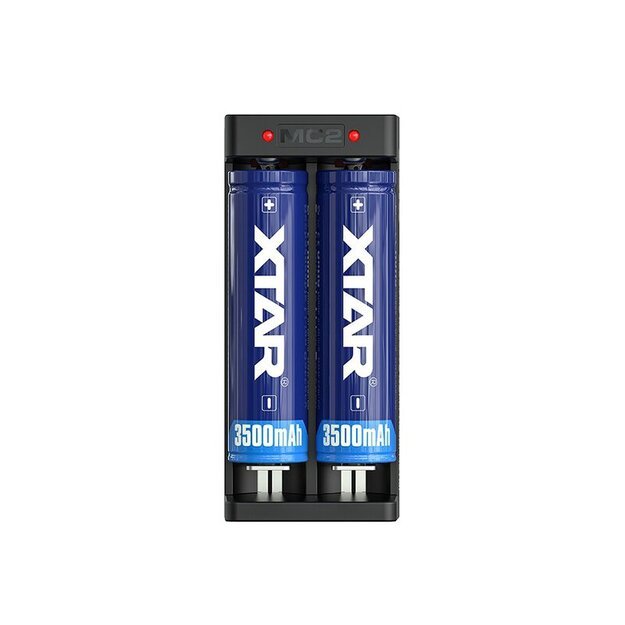

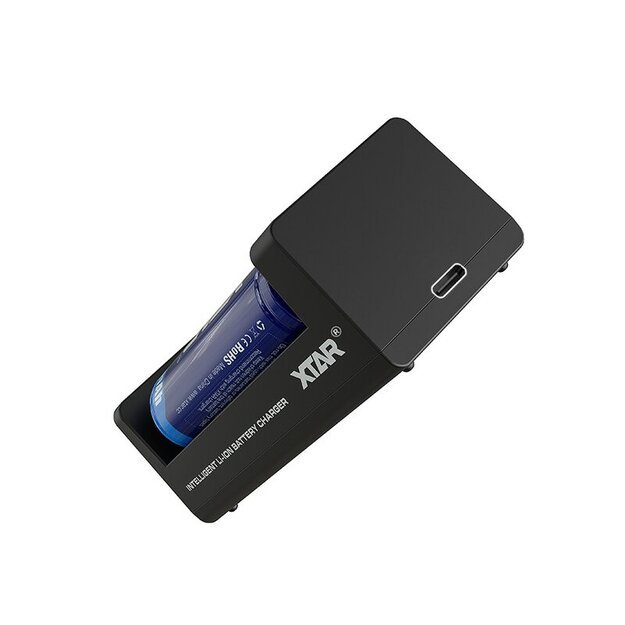

18650 battery charger for 1-2 Li-ion battery cells 3.7V via USB MC2 with Type C
18650 battery charger for 1-2 Li-ion battery cells 3.7V via USB MC2 with Type C
-
- Ultra-small and versatile battery charger.
- Two independent charging channels - two batteries of different sizes or capacities can be charged simultaneously
- Processor-controlled three-stage charging process (TC/CC/CV)
- LED indicator for charging status
- Automatic charging current selection (0.25/0.5A) to optimise charging time and ensure long battery life
- Powered by USB-C connector - can be connected to any USB converter or computer outputs (min. 0.5A). Recommended power supply - 1A.
- Ultra small and lightweight
- Fully discharged cell recovery function
- *Attention. In some cases it is not possible to revive fully discharged cells. Avoid fully discharging lithium-ion batteries - this significantly reduces their life and capacity. In the absence of the ability to control the level of battery discharge, use batteries with an integrated PCB controller.
- Protection against short circuits, incorrect polarity and overheating
- Suitable for charging all 3.6V - 3.7V 10440 - 26650 Li-ion batteries*
- *Maximum battery length - 70mm. May not fit 26650/20700/21700 batteries with PCB protection or convex "+" terminal
- The use of an external power supply reduces the temperature rise of the charger during charging, thus protecting the battery from additional heating. The design of the charger ensures a maximum temperature rise of 15C during charging.
- Technical characteristics:
- Rechargeable cell types: Li-ion 3.6V-3.7V (both plain batteries and with PCB controller)
- Rechargeable cell sizes: 10440, 14500, 14650, 16340, 17500,17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650 (maximum cell length 70mm)
- Power source: External USB charger (USB-A to USB-C cable included)
- Power supply voltage: USB 5V; min. 0.5A; recommended - 1.0A (USB charger not included)
- Charging method: TC/CC/CV
- Full charging cutoff voltage: 4.2V ± 0.05V
- Dimensions: 92 x 40 x 32mm
- Weight: 42g
- Package Contents:
- MC2 charger
- USB charging cable
- User manual
